The FD-Pharma^® is the liquid unit dose packaging solution

The FD-Pharma^® is the liquid unit dose packaging solution for small pharmaceutical manufacturers and contract development and manufacturing organizations (CDMO) seeking to grow their market base with greater packaging capabilities. The system is also a reliable alternative for Abbreviated New Drug Applications (ANDA) where initial volumes are too small to be contracted with a CDMO. It is a tabletop self-contained complete liquid unit dose proven solution which includes the packaging system, barcode labeling software, die cut lidding and all required materials.

MPI’s Drug Master File enables us to rapidly support customers’ compliance and filing needs within the pharmaceutical industry as well as meet the needs of pharmaceutical drug manufacturers and CDMOs for FDA-compliant liquid cup packaging capabilities.

FD-Pharma^® recently allowed a company to bring a new product to market benefiting patients and healthcare providers. Click here to read about it.

Landing Page Form Top

"*" indicates required fields

Key benefits associated with the FD-Pharma^®

Packages at a rate of 30-35 cups per minute
Small Footprint
Small Price Point
Professional Results
Low Cost Per Dose
Serialization
Produces FDA-Compliant Packages
Easy to Operate
Minimal Training & Maintenance Required
Manufactured in the United States

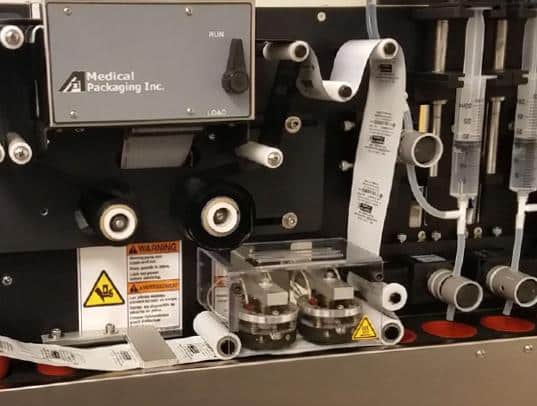

Key features included with the FD-Pharma^®

Automated cup indexer

Two cup magazines
each holds up to 180 large or 300 medium/small cups

Seal temperature control set at 220°C
programmable range is 150°C to 230°C

Interface contains resistive touchscreen controls

Dual stainless steel positive displacement pumps

Pumping setup
(syringe, tubing and pinch valves) are customizable

Die cut feature trims the lidding to the perimeter of the cup leaving one tabbed section (production speed is up to 23 cups per minute when using this feature)

Packaging Materials

All packaging materials are developed specifically for use with the liquid unit dose packaging system. The materials are manufactured according to MPI’s specifications and have been utilized in successfully packaging liquids for more than twenty years.

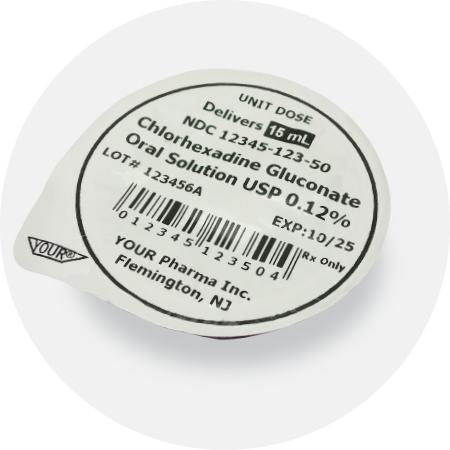

Four cup sizes available
7mL, 15mL, 25mL and 35mL
Multiple cup sizes allow for a range of fill capability
while minimizing headspace
Four standard colors maintained in stock
by MPI – Blue, Amber, Red and Yellow
Custom colors available
HDPE cups
Lidding stock designed to seal with HDPE cups
Eliminate the need to source packaging materials
from different vendors
We offer blanket purchase orders
for scheduled release to meet production requirements and protects your materials from general inventory

Additional Components

We offer additional components for the FD-Pharma^® to enhance liquid unit dose packaging production:

Barcode Verifier
scans each barcode in line to validate a readable scan

Air Rinser
a burst of air that removes any potential particles in cup prior to the filling stage

Interested in More Information?

Please complete the form below if you are interested in more information on the FD-Pharma^® liquid unit dose packaging system, would like to receive an estimate or speak with one of our product experts.
