Auto-Draw® Oral Syringe Filling System
Auto-Draw® Oral Syringe Filling System

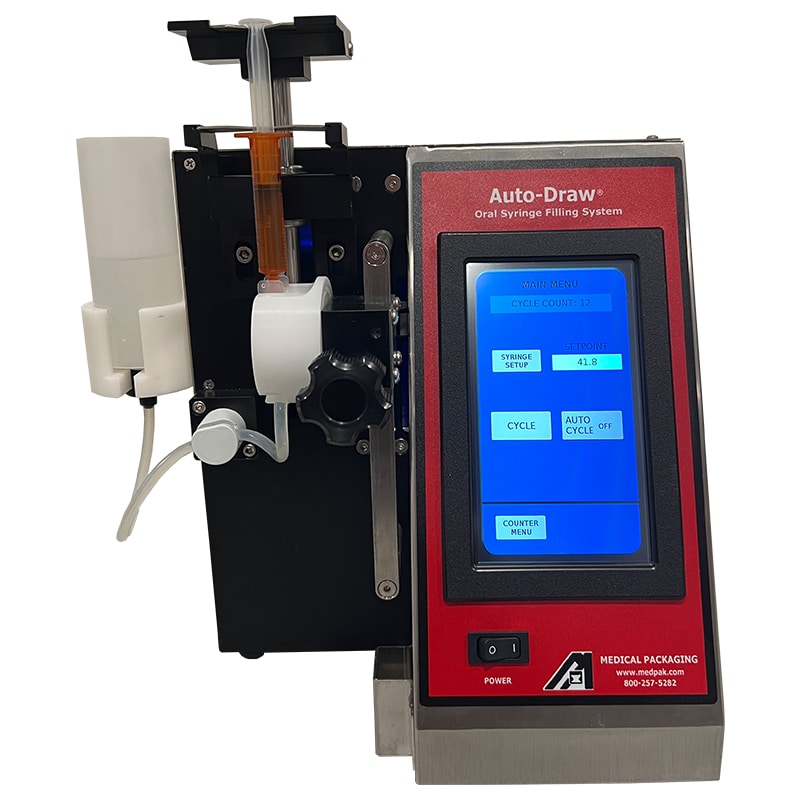

Medical Packaging Inc., LLC (MPI)’s Auto-Draw® Oral Syringe Filling System is a semi-automatic solution that is capable of precisely filling most oral slip syringes ranging from 1 mL up to 50 mL in volume of varying viscosities. With a compact footprint and easy-to-navigate touch screen interface, MPI’s Auto-Draw Oral Syringe Filling System automates batch filling of disposable syringes with speed, accuracy, and repeatability. Setup is as easy as drawing an empty, sterile syringe to the desired graduation mark and tapping the syringe to the screen, setting the draw which will be repeated for the duration of the filling process.
High speed filling operations can be completed in a matter of a few seconds, and no additional software is required. MPI’s Auto-Draw Oral Syringe Filling System can be used with most brands of oral slip syringes, allowing users to continue using their current supplier, and it does not require the purchase of syringes from another manufacturer. The use of MPI’s economical and disposable tubing makes for easy cleanup between batches and is offered at roughly ½ the price of those offered by competing syringe filling machines from other medical device manufacturers. Medication can be poured into the supply container or drawn directly from the manufacturer’s container.
Implementing MPI’s high performance Auto-Draw Oral Syringe Filling System is an innovative solution that significantly improves the speed and accuracy of filling large batches of syringes and eliminates the need to draw the medication into the syringe manually, which can contribute to decreasing Repetitive Stress Injuries (RSI).
Our medical packaging machines are of the highest quality and made to increase production rates throughout the pharmaceutical industry.
Product Details
- Precise Filling: Capable of filling oral slip syringes from 1 mL to 50 mL with varying viscosities.
- Automated Batch Filling: Increases speed, accuracy, and repeatability.
- User-Friendly Touchscreen Interface: No additional software required.
- Compatible with Most Syringe Brands: No need to switch suppliers.
- Economical Disposable Tubing: MPI’s tubing costs half the price of competitors’ tubing.
- Compact & Space-Efficient: Small footprint with easy setup and operation.
- Reduces Repetitive Stress Injuries (RSI): Eliminates manual syringe filling.
- Can Draw Directly from Manufacturer’s Container: No need for additional transfer steps.
Specifications
- Size: 11.1″ W x 11.6″ D x 12.3″ H
- Weight: 25 lbs.
- Power: 115/230V, 50/60Hz, 25 Watt
- Software Requirements: None. Managed through touchscreen controls.
- Material Requirements: Requires the use of MPI authorized tube sets.
- Space Requirements: Sturdy and level countertop, height of 35″ or higher for comfortable working conditions. Clearance above the counter should be 13″ minimum. More than 4′ of counter space is recommended. The Auto-Draw Oral Syringe Filling System requires one (1) 120V outlet. Placing this device as close to a sink as possible is ideal when working with liquids.
For labeling syringes, the Auto-Wrap® Syringe Labeling System is the perfect complement to MPI’s Auto-Draw Syringe Filling System.
