The Importance of Machine Design in Unit Dose Packaging

The Short Answer: Machine design decides how easily a pharmacy runs a single-dose packaging system, how accurately it doses, and how reliably its barcodes scan downstream. Ease of use, repeatable dosing, readable barcodes, and a single control platform are the design areas that separate a system supporting patient safety from one that creates delays and rework.

Pharmaceutical unit dose packaging looks simple from the outside: one individual dose of oral medication, one sealed unit dose pack, one barcode. The equipment producing each single dose handles several jobs at once, and each one traces back to a design choice made long before the machine reached the pharmacy.

Those choices show up every shift. They affect how fast a pharmacy produces a run, whether a backup operator can step in without a hitch, and how much output a scanner accepts on the first pass.

What Machine Design Has to Get Right

• Ease of use: A packaging line cannot depend on one trained operator. Setup, material threading, and daily operation have to stay simple enough that a backup can step in without slowing the line.
• Fast troubleshooting: When a run stops, the operator needs quick access to the components causing the problem, plus a vendor who answers when a fix is beyond the pharmacy. Waiting on either one turns a short pause into a backlog.
• Accurate, repeatable dosing: Patient safety starts with the dose itself. Accurate dosing means every fill matches the last one, cup after cup and package after package, so the patient gets the right dose with no drift across a long run.
• Readable barcodes: A barcode only helps if the scanner reads it and the pharmacy system accepts it. Smudged printing or a broken symbol sends a nurse looking for a workaround, and that is where medication errors begin.
• One control platform: Splitting strip packaging, labeling, and liquid work across separate systems creates confusion and room for error. A single control point keeps the whole workflow in one place.

A gap in any one of these areas creates delays, errors, and, in the worst case, disruption of patient care.

How MPI Addresses This

• Open-faced design: Every MPI machine uses an open-faced design, so setup stays simple, the user experience stays approachable for a backup operator, and staff reaches the critical components without taking the machine apart.
• Auto-Print® Plus maintenance: The Auto-Print® Plus was shaped by customer feedback, with do-it-yourself preventive maintenance that needs no technical background. Routine upkeep stays in the pharmacy’s hands.
• Fluidose® Series 6 calibration: The Fluidose® Series 6 liquid packager stores calibration settings for each product and applies them every cycle, so dosing stays accurate from the first cup to the last.
• Pak-EDGE® UD Barcode Labeling Software 2.0: One platform runs strip packs, liquid cup packaging, syringe labeling, auxiliary barcoding, and secondary packaging like overwrapping. Exportable reports support inventory management and lot traceability, so a health system can trace affected packages across the supply chain during a recall.
• MPI-certified materials: MPI-certified materials protect the medication and hold a clean, fade-resistant print, so labels stay readable through handling and at the scanner.
• Free technical support: MPI’s technical support is free and highly rated, and its technical support app and website put the reference library in the operator’s hands before they need to call.

Barrier Class Is the Baseline

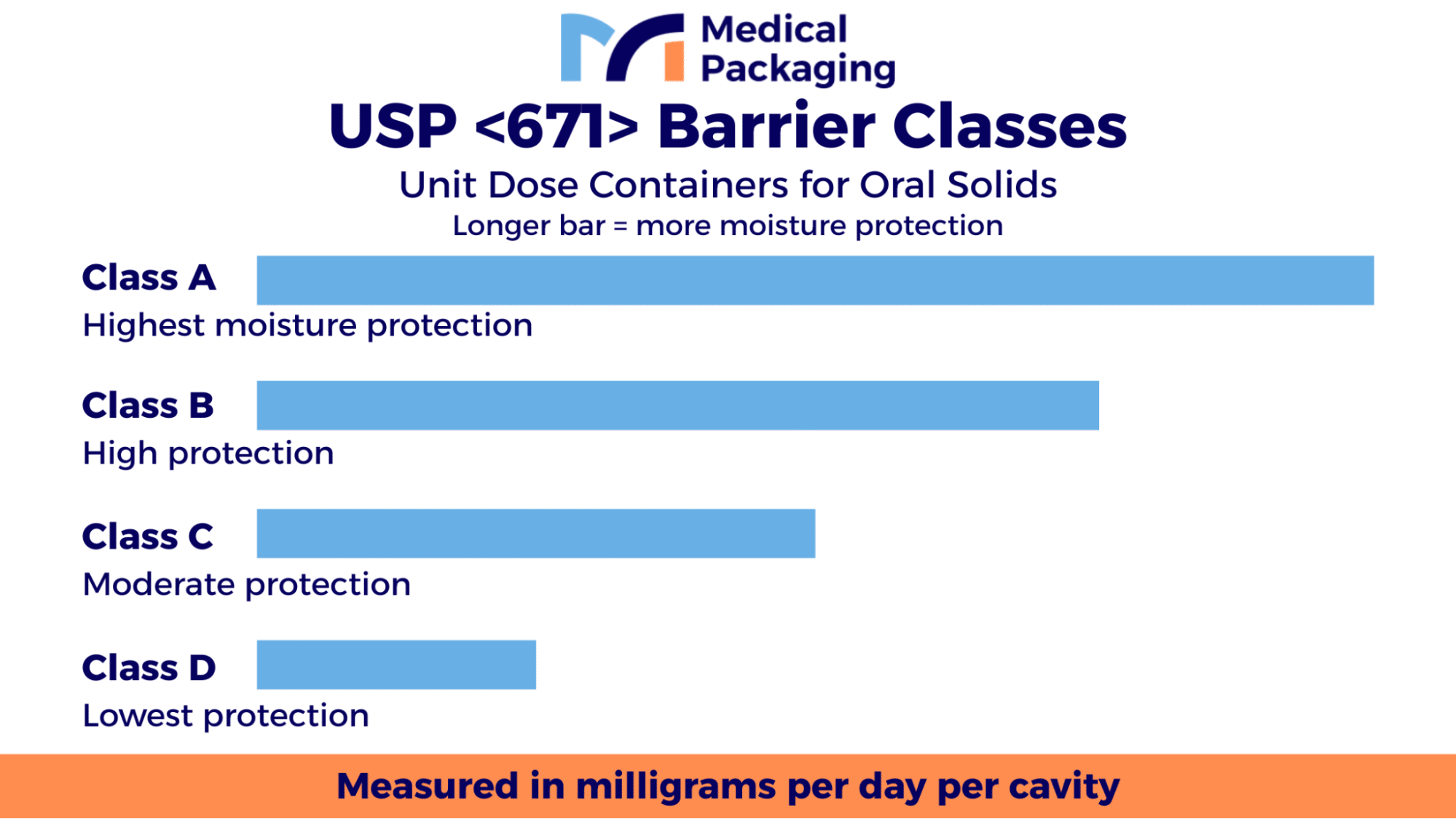

Every oral solid unit dose container carries a barrier rating. USP General Chapter <671> sorts them into Class A through D by how much moisture reaches the drug product, with Class A offering the most protection. Barrier materials set the class, and the machine has to hold that class across a full run, so the finished package performs the way the film is rated.

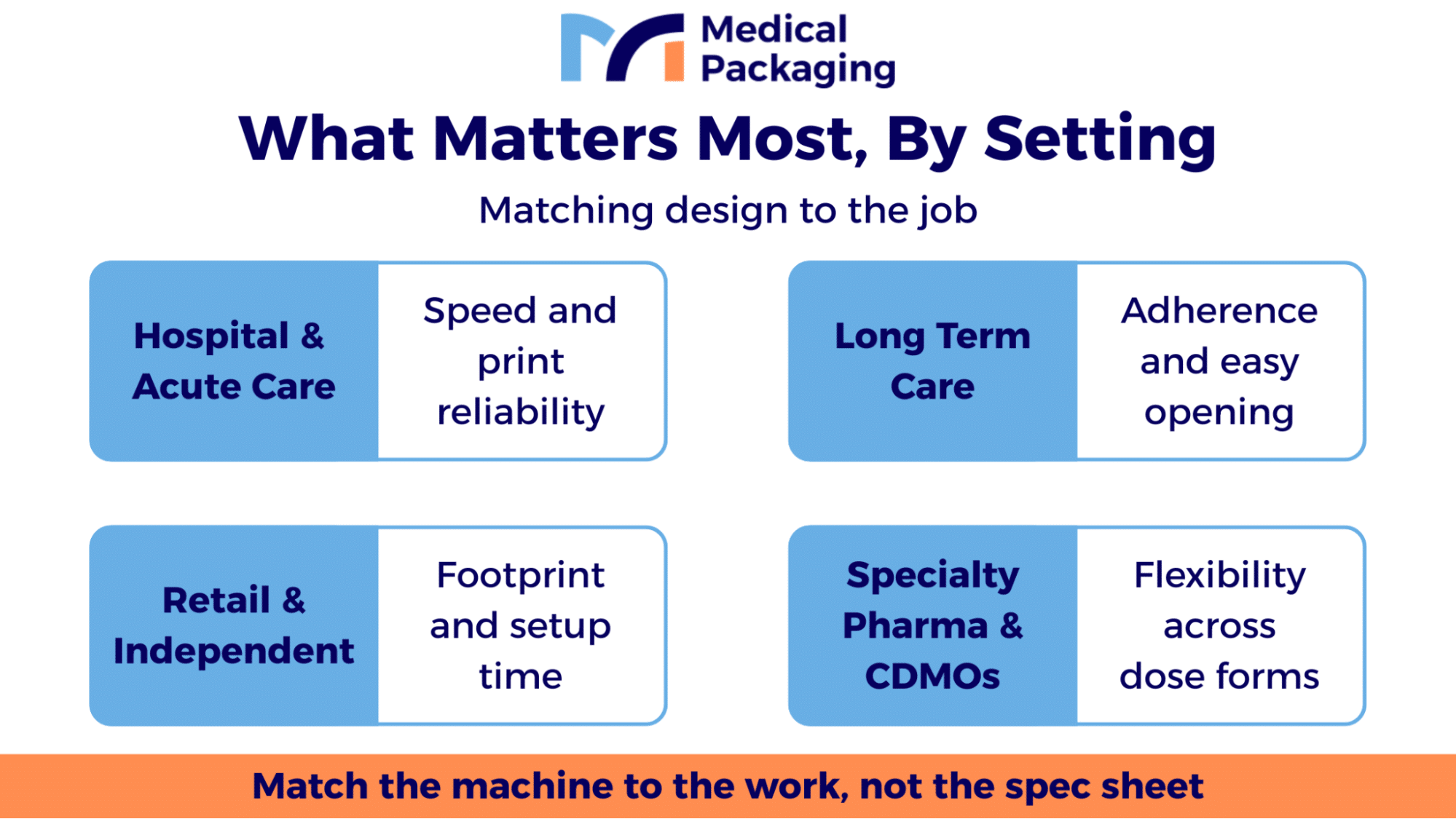

Matching Design to the Setting

• Hospitals and acute care: high volume across a wide formulary. Speed and print reliability carry the most weight.
• Long-term care pharmacies: short-cycle dispensing for older patients on complex regimens. Packaging that supports medication adherence and easy opening matters as much as throughput.
• Independent and retail pharmacies: footprint and setup time drive the decision.
• Specialty pharmaceutical manufacturers and CDMOs: small batches, frequent changes, and unique needs. Flexibility across dose forms outweighs peak speed.

The same question applies to oral liquids. Fluidose® Series 6 and FD-Pharma® systems handle cup and syringe formats where fill accuracy and accurate dosing replace seal integrity as the primary concern.

Design and Regulatory Compliance

Machine design feeds regulatory compliance in three places:

• Materials: FDA-registered materials and manufacturing processes meeting USP Class A and B standards
• Barcode content: federal labeling rules require a linear barcode carrying the National Drug Code on most prescription drug packages used in hospitals
• Documentation: MPI’s FDA-accepted Type III Drug Master File gives customers direct access to packaging component documentation for an NDA or ANDA filing

A Format Change Worth Designing For

In March 2026, the FDA finalized a rule changing what a barcode carries. The National Drug Code moves to a uniform 12-digit format on March 7, 2033, with a three-year transition through March 2036. The same rule allows nonlinear barcodes, including 2D formats.

Those dates are years out, but equipment bought today will still be running when they arrive. Ask any vendor whether the software handles both 10-digit and 12-digit codes, and whether the system prints 2D barcodes.

Choosing a Unit Dose System That Holds Up

Machine design decides whether unit dose packaging does its job. Simple operation keeps a run going when staff changes, accurate dosing protects the patient, readable barcodes carry through to the bedside, and one control platform keeps the workflow together. A system that handles one of these well and struggles on the rest creates work somewhere else.

MPI has built packaging and labeling equipment for hospitals, long-term care facilities, retail pharmacies, repackagers, and pharmaceutical manufacturers since 1971. Oral solid systems run up to 80 packages per minute with integrated barcoding, MPI-certified materials meet USP Class A and B standards, and the Type III Drug Master File supports customers filing with the FDA.

Contact MPI to talk through your volume, space, and dose forms, and find the unit dose system that fits how your pharmacy works.
